Home station pro for heat pump systems
In a 5-pipe system
![x-change dynamic pro AW E air/water heat pump x-change dynamic pro AW E air/water heat pump for outdoor installation](/media/indoorclimate/products/heat_pump_and_storage/x-change_Waermepumpe/x-change_dynamic_pro_Luft_Wasser_Aussen/KIMI_x-change_dynamic_pro_03.jpg)
Specially designed for use in conjunction with heating systems with a high-temperature circuit for domestic water heating and a low-temperature circuit for heat transfer. Low temperature circuit with separate differential pressure controller.
Benefits
![](/media/_processed_/7/2/csm_Wohnungsstation_Waermepumpenanlagen_ef76ae5e15.png)
- Modular design, the right home station for every requirement
- Fitted with top quality components for a long service life
- Separate low temperature connection for panel heating
- Summer bypass and differential pressure controller for balancing the stations with each other already included as standard
- The innovative plug connection guarantees a secure connection even if there are pressure surges, and installation and maintenance are simple and tool-free.
- High energy efficiency to minimise heating costs
- Three-part thermal insulation shells reduce heat loss while at the same time preventing cold water being unintentionally heated.
- One of the lightest home stations on the market for quick and easy installation.
- Innovative new material significantly reduces heat dissipation
- and has an extremely smooth surface which prevents deposits and blockages.
- Already meets RoHS 2024 requirements today
- Stainless steel heat exchangers are available in x-net home stations in performance categories 37, 45, 55, and 75 kW.
- Copper or stainless steel brazed heat exchangers are available, depending on the drinking water analysis.
Product information
Application area
- Heat pump
- Hot water
- Panel heating
Product description and function
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/Waermepumpe_KIB_Montageabl_Wohnungsst_pro-_1_.jpg)
The home station (1) consists of:
- Heat exchanger without gaskets
- Separate low temperature connection (2a) to connect the x-net manifold set 2–12 radiators with AB-PM differential pressure controller to separately balance the low temp. network
- 1 differential pressure controller for high energy efficiency and constant hot water temperature (for balancing stations with each other)
- Integrated summer bypass
- Adapters for heat flowmeters (1x high temp. circuit / 1x low temp. circuit) and cold water meter
- EPP housing consisting of rear panel with recessed grips to facilitate installation and three-part insulating cover
The primary lines (HT circuit) and the manifold set (3) are connected via the x-net ball valve set (2). The low temp. network is connected via the separate side connection point (2a).
Depending on requirements, 2 to 12 heating circuits are connected to the low temperature circuit (NT) via the manifold set (3), which supplies the panel heating
The top-hat rail already included in the manifold set makes it easy to install the terminal strips directly.
Pre-wired terminal strips such as the x-net ready line (4) are available for this
Accessories
![](/media/_processed_/8/0/csm_Kugelhahnset_Wohnst_41f5336233.png)

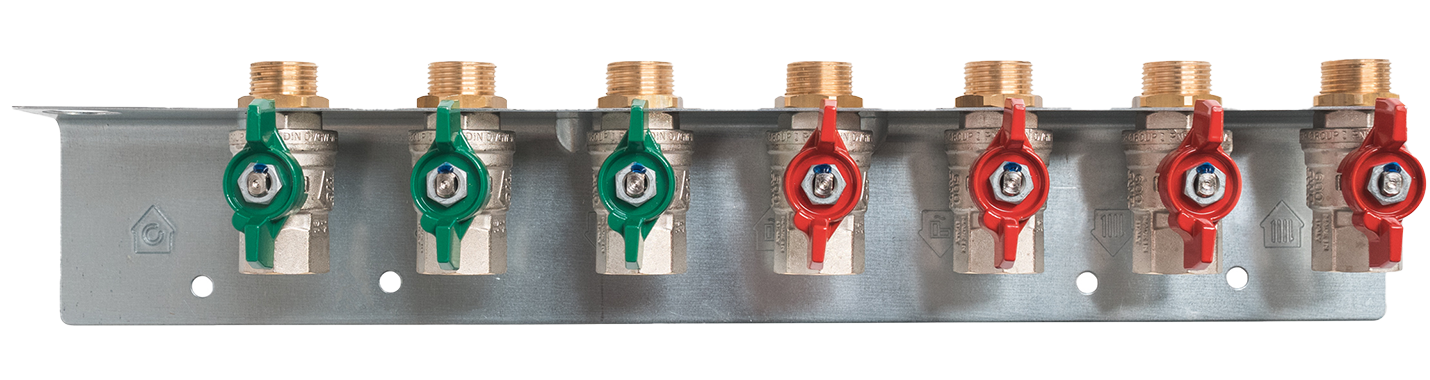

The primary lines (HT circuit) and the manifold set (3) are connected via the x-net ball valve set (2). The low temp. network is connected via the separate side connection point (2a).
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/Verteilerset_Wohnungsstation.png)
Depending on requirements, 2 to 12 heating circuits are connected to the mixed heating circuit via the manifold set (3), which supplies the panel heating.
The top-hat rail already included in the manifold set makes it easy to install the terminal strips directly.
![](/media/_processed_/4/4/csm_KIB_SFEKLVK_ready_line_b4744714b8.png)
Pre-wired terminal strips such as the x-net ready line (4) are available for this
Connections
![](/media/_processed_/4/e/csm_Anschlussbild_WohnungsstationWaermepumpenanlagen_b503694528.jpg)
Cabinets
Various versions of flush-mounted cabinets are available, depending on the home station / area of application and accessories used.
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/Schrank1.png)
Body and cover large size 3 + 4:
Height 1365 mm, width 690 + 930 mm
Suitable for home station for heat pump systems with low temp. circuit connection within the manifold cabinet
Optional accessories
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/KIB_SFSWZZS0001_Zirkulationsset.jpg)
