Home station pro for radiators
With unmixed heating circuit combined with radiators
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/KIMI_xflair_Li_f_Wohnungsstation.png)
Ideal for systems with radiators in both new-builds and existing buildings
Benefits
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/KIB_SFSW4_Wohnungsst_pro_statis.jpg)
- Modular design, the right home station for every requirement
- Fitted with top quality components for a long service life
- Summer bypass and differential pressure controller for balancing the stations with each other already included as standard
- The innovative plug connection guarantees a secure connection even if there are pressure surges, and installation and maintenance are simple and tool-free.
- High energy efficiency to minimise heating costs
- Three-part thermal insulation shells reduce heat loss while at the same time preventing cold water being unintentionally heated.
- One of the lightest home stations on the market for quick and easy installation.
- Innovative new material significantly reduces heat dissipation
- and has an extremely smooth surface which prevents deposits and blockages.
- Already meets RoHS 2024 requirements today
- Stainless steel heat exchangers are available in x-net home stations in performance categories 37, 45, 55, and 75 kW.
- Copper or stainless steel brazed heat exchangers are available, depending on the drinking water analysis.
Product information
Areas of application
Areas of application
- Hot water
- Radiators
Product description and function
Product description and function
![](/media/_processed_/8/1/csm_KIB_SFSW4_Wohnungsst_pro_statis_68520300b5.jpg)

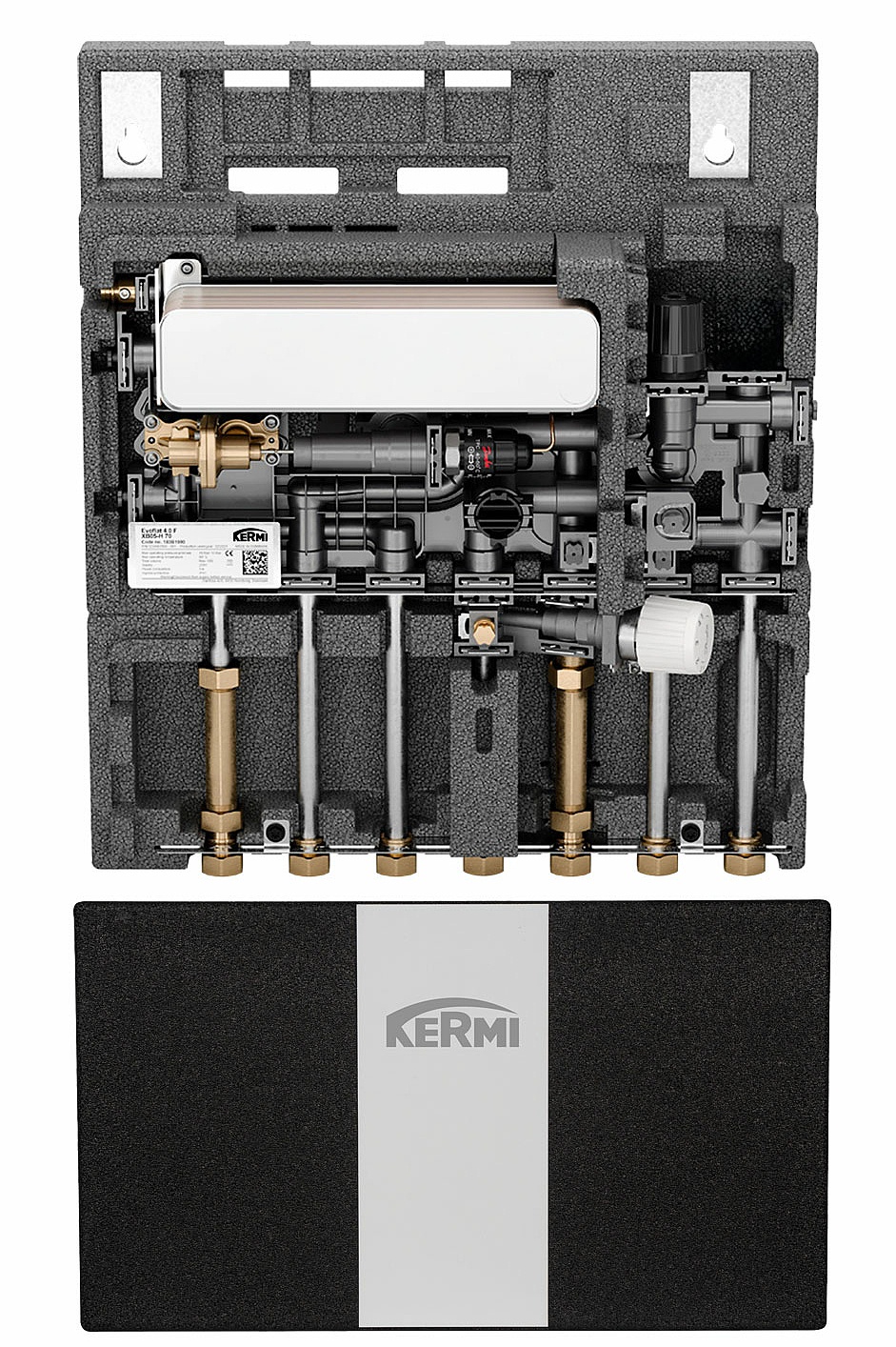

The home station (1) consists of:
- Heat exchanger without gaskets
- Flow and return outlet to connect to the radiator network
- 2 differential pressure controllers for high energy efficiency and constant hot water temperature (for balancing several stations with each other)
- Zone valve for Buildings Energy Act (GEG)-compliant control of the heating circuit (actuator and room controller with time control as accessory set)
- Integrated summer bypass
- Adapters for heat flowmeter and cold water meter
- EPP housing consisting of rear panel with recessed grips to facilitate installation and three-part insulating cover
- The x-net ball valve set is used to connect the primary lines and the radiator circuit
Accessories
Accessories
![](/media/_processed_/8/0/csm_Kugelhahnset_Wohnst_622037f4f0.png)

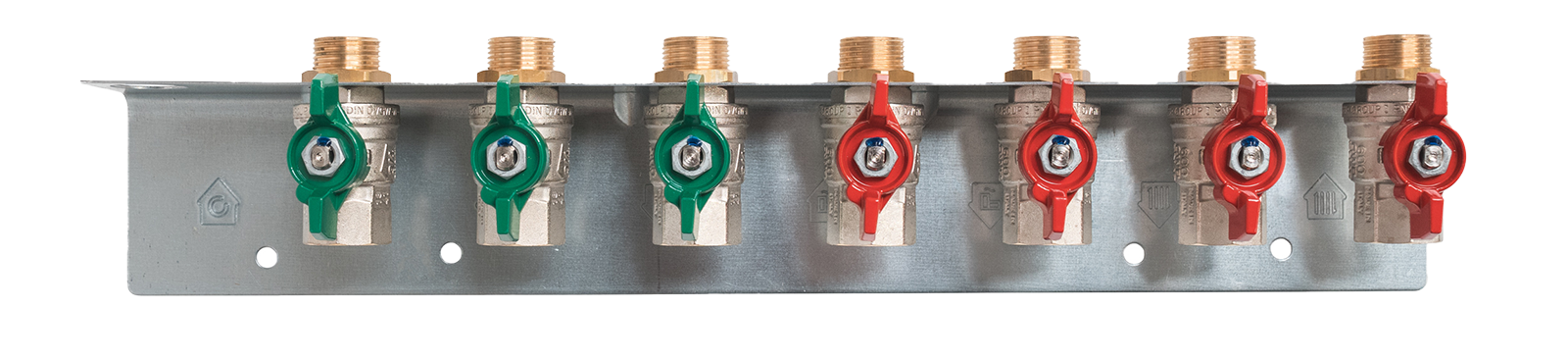

The x-net ball valve set is used to connect the primary lines and the radiator circuit
Connections
Connections
![](/media/indoorclimate/products/panel_heating_and_cooling/x-net_home_station/Anschlussbild_ungemischterHeizkreis.jpg)
Cabinets
Cabinets
Various flush-mounted cabinets are available for installing the home station. Depending on the home station / area of application and accessories used.
![](/media/_processed_/4/9/csm_Schrank2_8ddff1810e.png)
Body and cover small:
Suitable for home stations with unmixed heating circuit or home stations without panel heating manifold directly connected

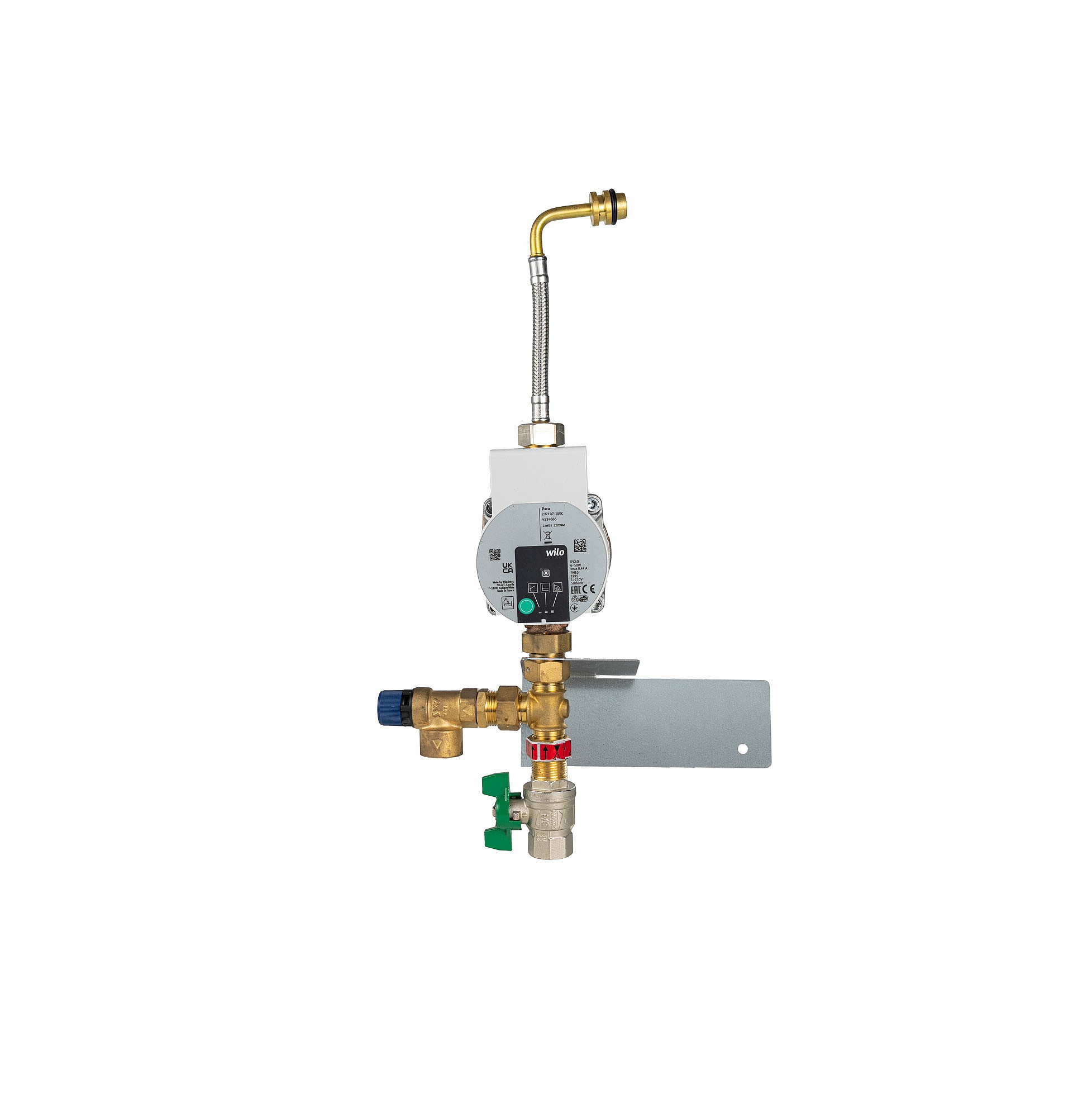

Optional accessories
Optional accessories
![](/media/_processed_/a/9/csm_KIB_SFSWZZS0001_Zirkulationsset_e6a509b345.jpg)
