x-fresh® Single Split System
Targeted air conditioning for individual rooms - efficient, quiet and energy-saving.
Low installation effort and optimum energy efficiency. The single split system is suitable for targeted air conditioning of individual rooms or larger room units
Highlights
Models
Documents
Features
- Cost-efficient: Ideal solution for individual rooms with low investment costs
- Easy installation: quick to install, compact and space-saving
- Reliable: Air conditioning ensured by emergency operation function
- Healthy climate: filter with high filtration performance
- Register cleaning of the outdoor unit thanks to fan reversal function
- Outdoor unit pre-filled with refrigerant for pipe lengths of up to 5 metres

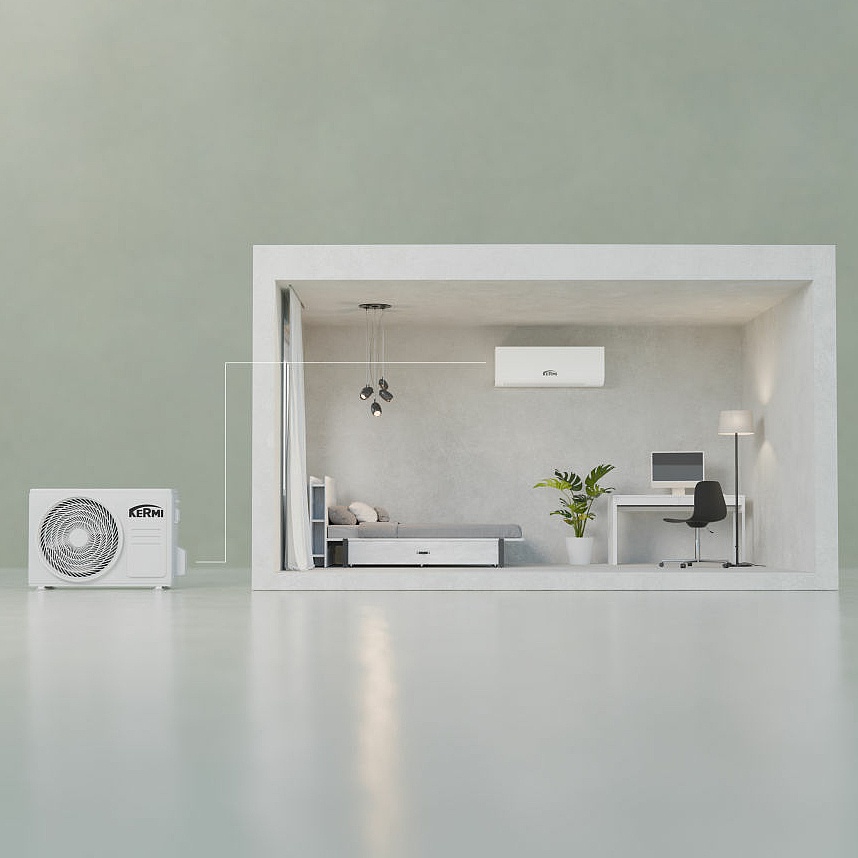

Single split system
x-fresh highwall basic
x-fresh highwall basic - Combinations
Combination 27
- Indoor unit: x-fresh indoor highwall basic 27SR
Outdoor unit: x-fresh outdoor basic 27S - Power supply: 1 output 230V
- Cooling output (kW): 2.60
- Cooling output Btu/H: 9000
- SEER: 6.20
- Heating capacity (kW): 2.90
- Heating capacity Btu/H: 10000
- SCOP: 4.00
- Energy class cooling/heating: A++ / A+
Combination 35
- Indoor unit: x-fresh indoor highwall basic 35SR
Outdoor unit: x-fresh outdoor basic 35S - Power supply: 1 output 230V
- Cooling output (kW): 3.50
- Cooling output Btu/H: 12000
- SEER: 6.10
- Heating capacity (kW): 3.80
- Heating capacity Btu/H: 13000
- SCOP: 4.00
- Energy class cooling/heating: A++ / A+
Combination 53
- Indoor unit: x-fresh indoor highwall basic 53SR

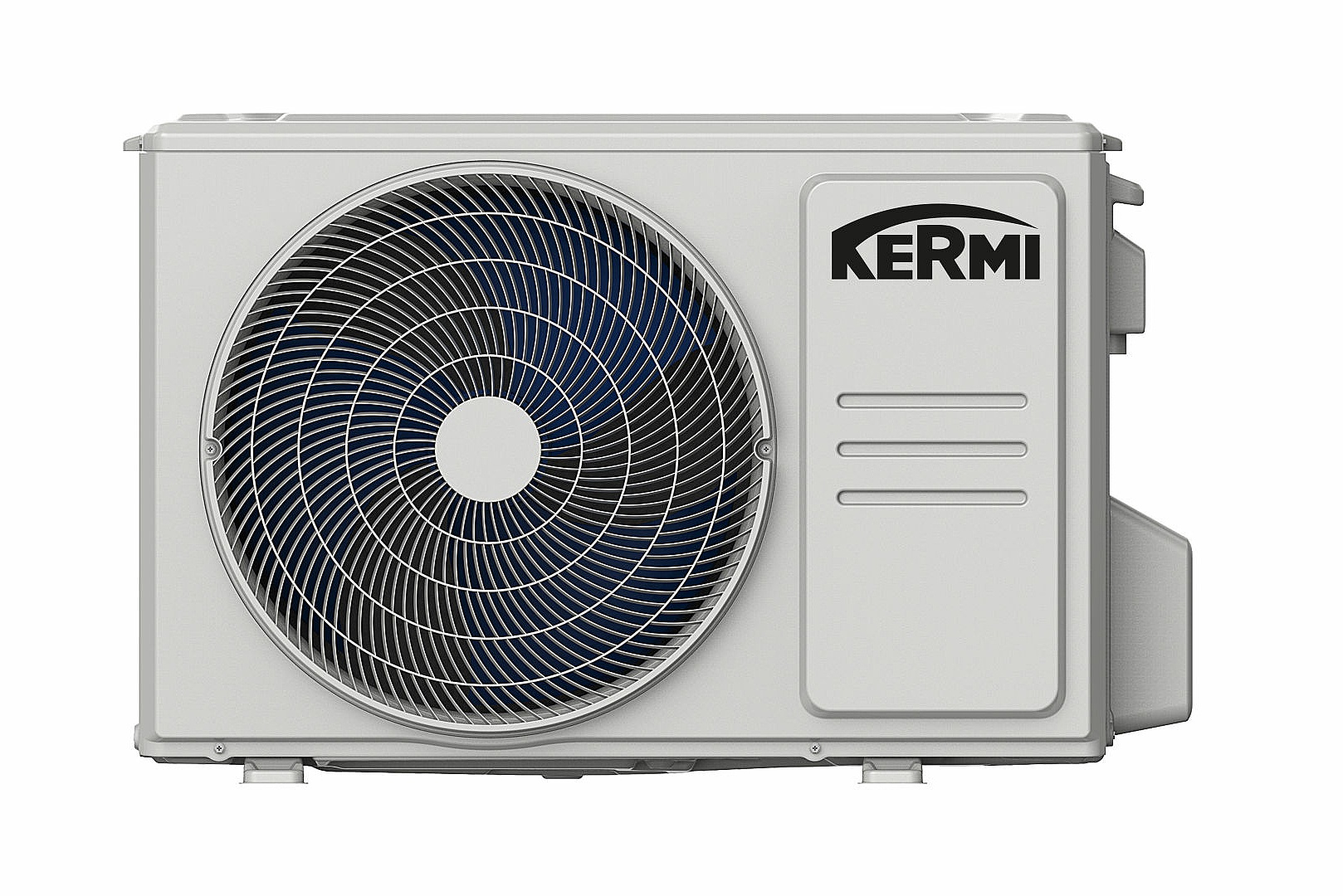

Outdoor unit: x-fresh outdoor basic 53S - Power supply: 1 output 230V
- Cooling output (kW): 5.27
- Cooling output Btu/H: 18000
- SEER: 7.00
- Heating capacity (kW): 5.39
- Heating capacity Btu/H: 18,400
- SCOP: 4.00
- Energy class cooling/heating: A++ / A+
Combination 70
- Indoor unit: x-fresh indoor highwall basic 70SR
Outdoor unit: x-fresh outdoor basic 70S - Power supply: 1 output 230V
- Cooling output (kW): 5.88
- Cooling output Btu/H: 20,100
- SEER: 7.00
- Heating capacity (kW): 6.66
- Heating capacity Btu/H: 22730
- SCOP: 4.00
- Energy class cooling/heating: A++ / A+
Single split system

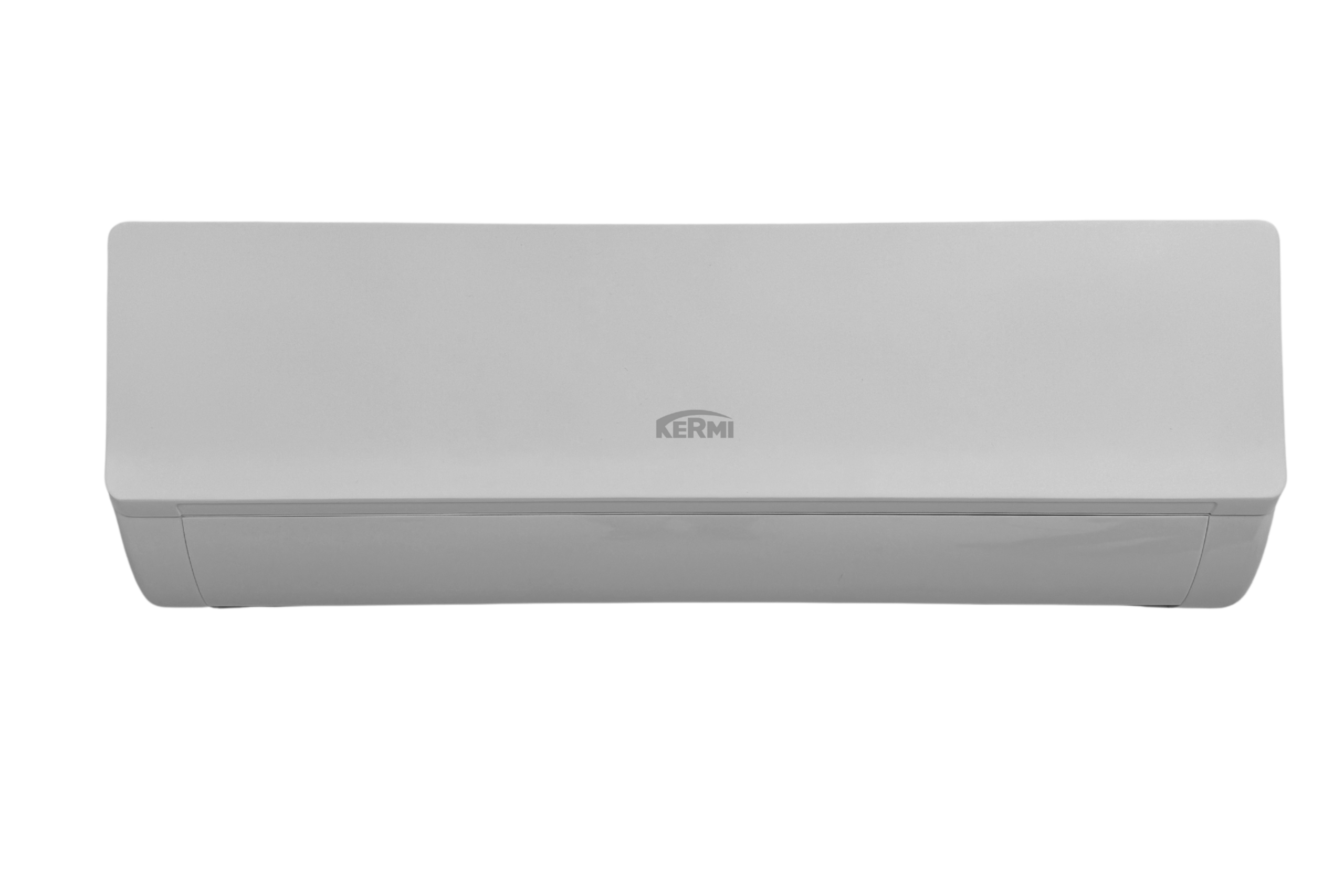

x-fresh highwall eco
x-fresh highwall eco - Combinations
Combination 29
- Indoor unit: x-fresh indoor highwall eco 29SR
Outdoor unit: x-fresh outdoor single eco 29S - Power supply: 1 output 230V
- Cooling output (kW): 2.60
- Cooling output Btu/H: 9000
- SEER: 8.80
- Heating capacity (kW): 2.90
- Heating capacity Btu/H: 10000
- SCOP: 4.60
- Energy class cooling/heating: A+++ / A++
Combination 35
- Indoor unit: x-fresh indoor highwall eco 35SR
Outdoor unit: x-fresh outdoor single eco 35S - Power supply: 1 output 230V
- Cooling output (kW): 3.50
- Cooling output Btu/H: 12000
- SEER: 8.50
- Heating capacity (kW): 3.80
- Heating capacity Btu/H: 13000
- SCOP: 4.60
- Energy class cooling/heating: A+++ / A++
Combination 53
- Indoor unit: x-fresh indoor highwall eco 53SR

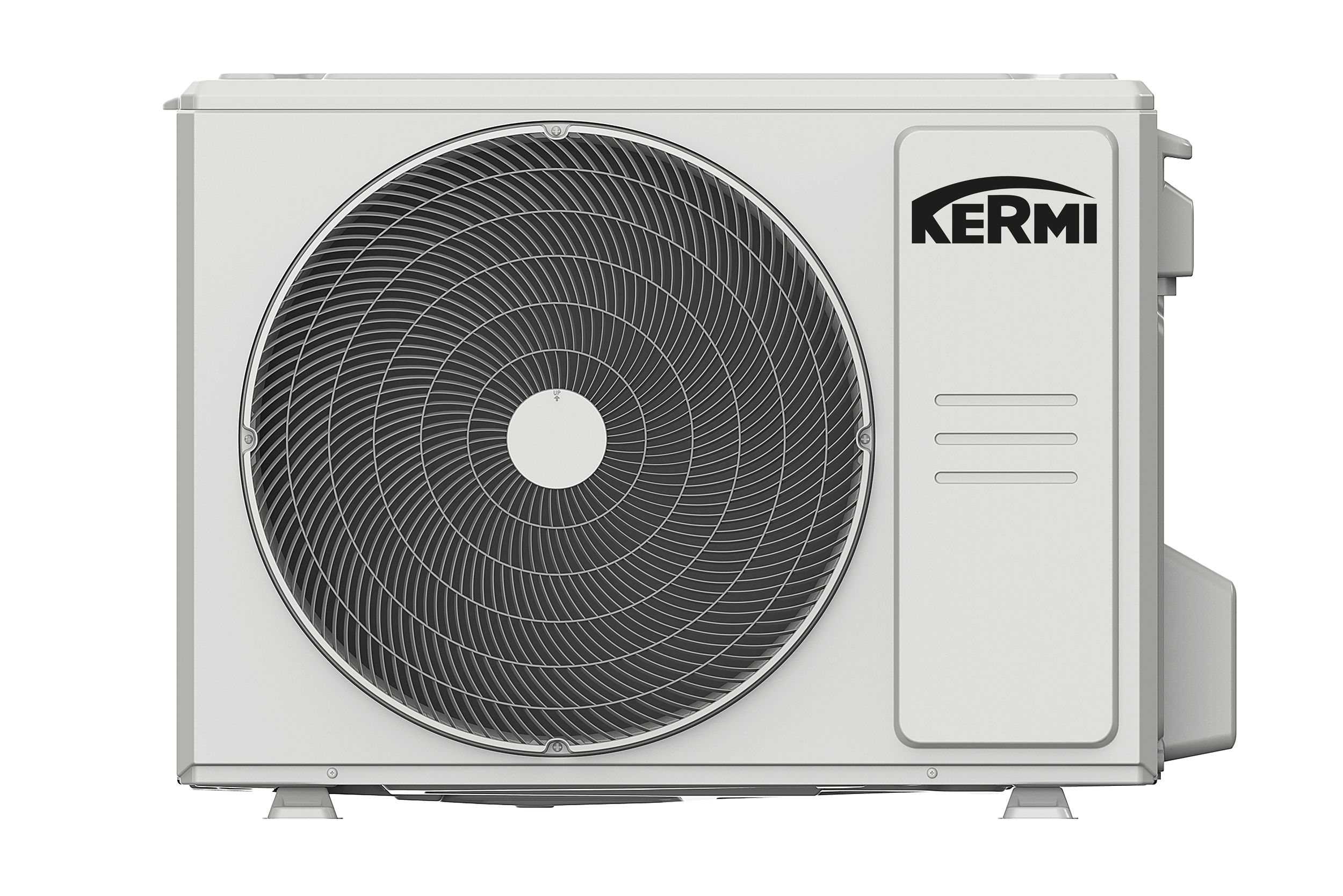

Outdoor unit: x-fresh outdoor single eco 53S - Power supply: 1 output 230V
- Cooling output (kW): 5.00
- Cooling output Btu/H: 17060
- SEER: 8.50
- Heating capacity (kW): 5.40
- Heating capacity Btu/H: 18400
- SCOP: 4.60
- Energy class cooling/heating: A+++ / A++
Combination 70
- Indoor unit: x-fresh indoor highwall eco 70SR
Outdoor unit: x-fresh outdoor single eco 70S - Power supply: 1 output 230V
- Cooling output (kW): 6.10
- Cooling output Btu/H: 20800
- SEER: 8.50
- Heating capacity (kW): 7.30
- Heating capacity Btu/H: 24900
- SCOP: 4.60
- Energy class cooling/heating: A+++ / A++
