Heat pump radiators x-flair®
The radiator for low flow temperatures
x-flair is the ideal radiator for low flow temperatures. The low-temperature radiator heats up quickly and distributes the heat effectively in the room by combining x2 technology with axial fans.
Refurbishing existing buildings with a heat pump. This radiator, which is designed for use with a heat pump, can be connected to existing pipes. It makes optimum use of the low flow temperature of the heat pump, heats up efficiently, and rapidly distributes the heat. This means that underfloor heating is not absolutely necessary. New build projects with a heat pump. Is it only at certain times that you need the children’s room, study, or utility room to get warm quickly? If so, x-flair is the perfect choice of radiator for your requirements.
Underfloor heating would take to long to respond in this context. This radiator is also perfect for operation in conjunction with condensing boilers.
In order to be truly efficient, condensing boilers rely on lower system temperatures. And, once again, that makes x-flair the ideal addition to the system.
x-flair heat pump radiators
Perfect for heat pumps and condensing boilers.
- Simple operation: Operation is the same as with a normal radiator via the thermostatic sensor head. The integrated fans switch on and off automatically as required
- Whisper quiet: Sound-optimised axial fans and integrated sound decoupling reduce noise to a minimum (only 25 dB, quieter than a whisper)
- Efficient: Significant reduction in system temperature possible. This makes the operation of heat pumps and condensing boilers highly efficient.
- Eligible for subsidies: As part of current subsidy programmes
- Design: The x-flair is visually identical to all therm-x2 steel panel radiators and therefore enables a uniform overall appearance
- Cooling function: The "dry cooling" function is available with the use of the special x-flair thermostatic sensor head
- With original x2 technology as standard
therm-x2 technology
up to 11 % energy saving
up to 25 % shorter heating period
up to 100 % higher radiation component
x-flair heat pump radiators
Available in the versions Available in the versions x-flair Profile-/Plan-/Line- K, x-flair Profile-/Plan-/Line-K, x-flair Profile-/Plan-/Line-K Replacement and x-flair Profile-/Plan-/Line-Vmulti

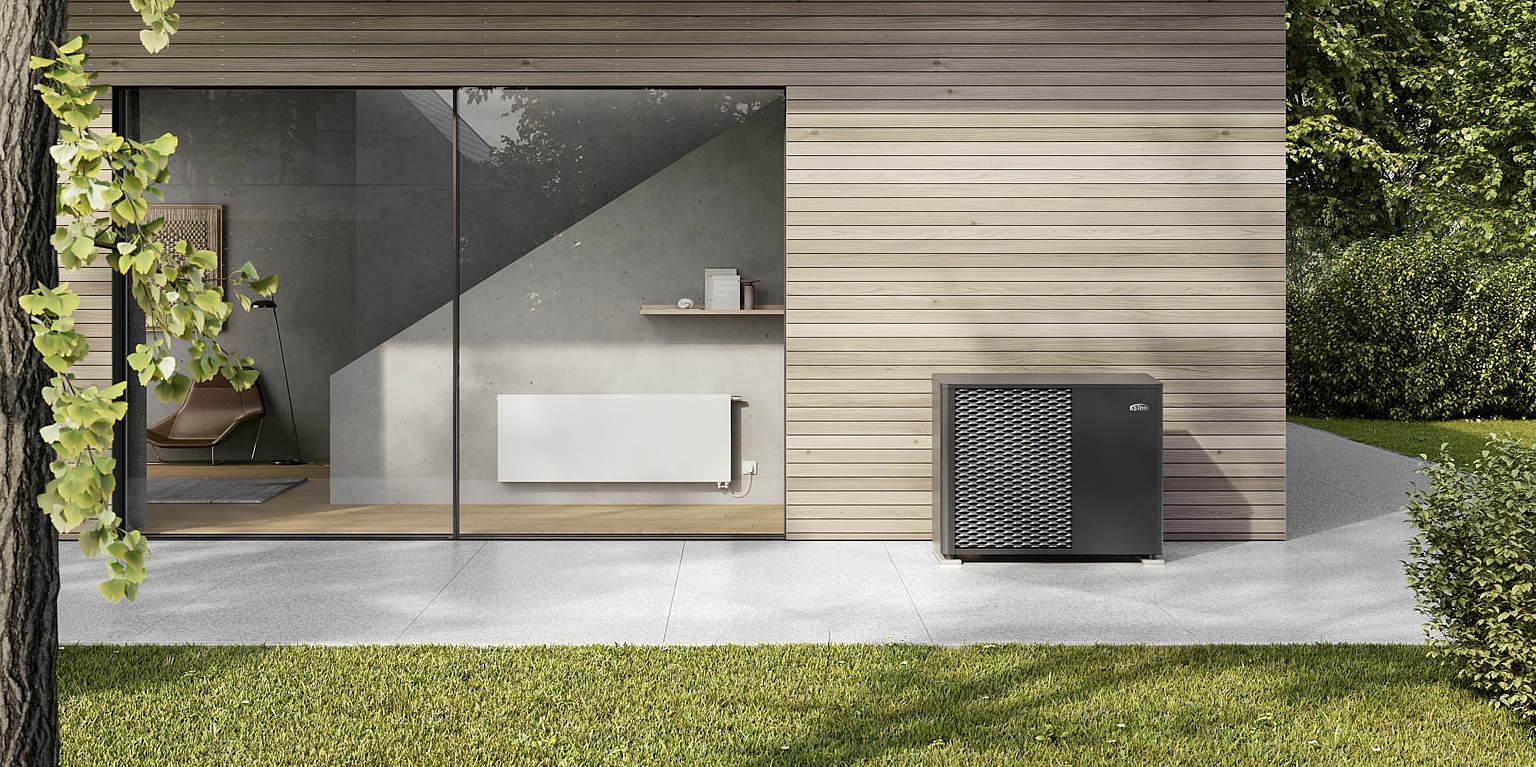

x-change dynamic pro S air/water heat pump
How the x-flair heat pump radiator works
Experience optimum comfort all year round with the x-flair radiator.

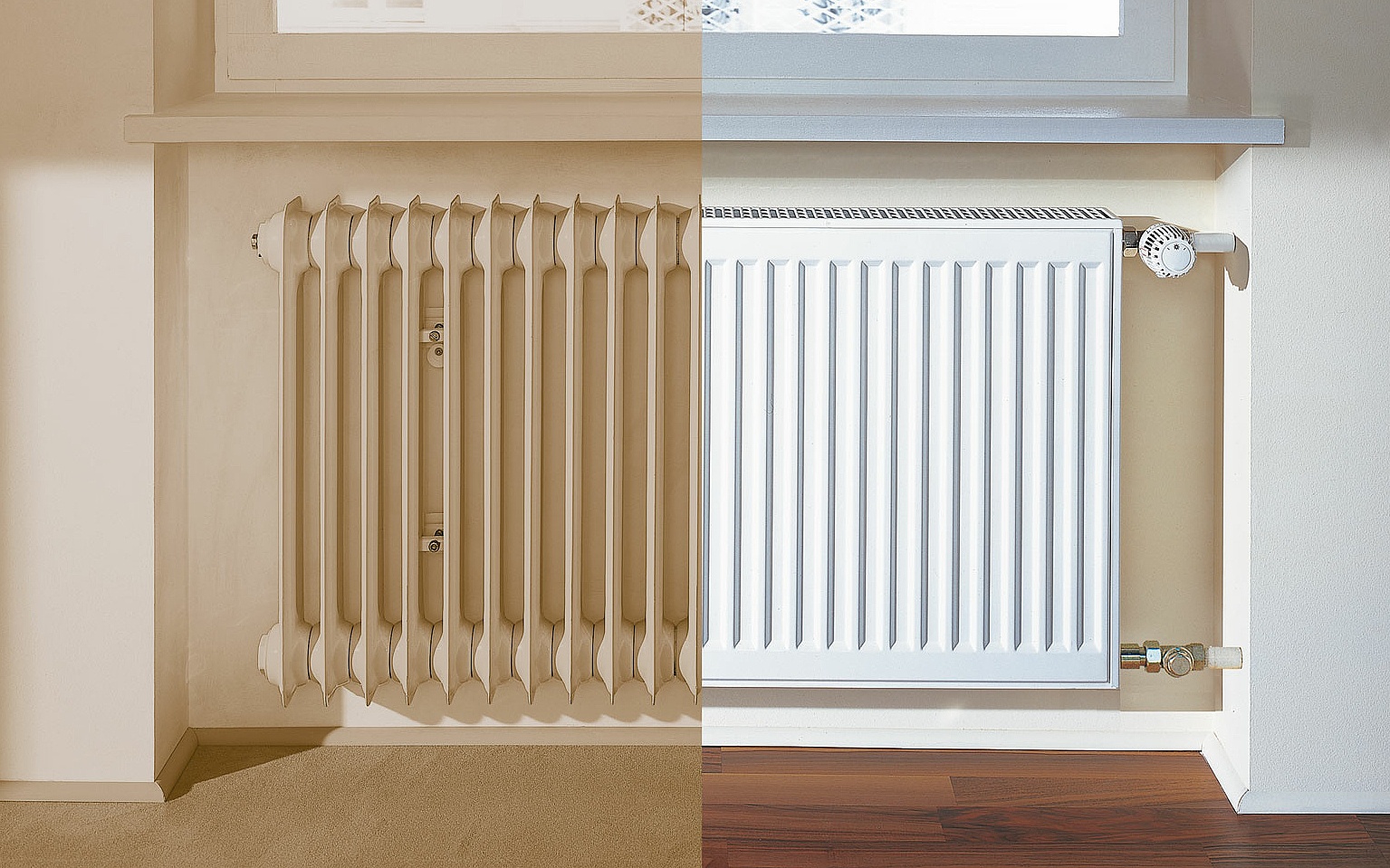

x2 technology plus integrated fans: this is how modern radiator technology works today. And thanks to standardised connections, replacing an old radiator is as easy as can be.
x-flair for optimised performance at low flow temperatures.
x-flair performance calculator
Simple determination of requirements
Simple heat requirement calculation with the x-flair performance calculator for the heat pump radiator
Perfect complement
x-change dynamic pro
Highest efficiency, lowest sound emissions, state-of-the-art control technology.
Further advantages
x-flair heat pump radiators
x-flair profile
| Profilecompact radiator for hot water operation x-flairProfile-K Type 22 | Type 33 | |
| Height mm | 400 - 900 |
| Length mm | 400 - 2000 |
| Depth mm | 100 - 155 |
| Heat output watts 55/45-20 °C | 567 - 3835 |
| Profilecompact radiator for hot water operation x-flairProfile-K Replacement Type 22 | Type 33 | |
| Height mm | 400 - 900 |
| Length mm | 400 - 2000 |
| Depth mm | 100 - 155 |
| Heat output watts 55/45-20 °C | 530 - 4040 |
| Profileradiator with integrated valve for hot water operation x-flairProfil-Vmulti Type 22 | Type 33 | |
| Height mm | 400 - 900 |
| Length mm | 400 - 2000 |
| Depth mm | 100 - 155 |
| Heat output watts 55/45-20 °C | 534 - 2804 |
x-flair Plan
| Compact radiator for hot water operation x-flairPlan-K Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 553 - 3890 |
| Compact radiators for hot water operation x-flairPlan-K Replacement Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 553 - 3913 |
| Valve radiators for hot water operation x-flairPlan-Vmulti Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 507 - 3768 |
x-flair Line
| Compact radiator for hot water operation x-flairLine-K Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 423 - 3768 |
| Compact radiator for hot water operation x-flairLine-K Replacement Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 581 - 3913 |
| Valve radiators for hot water operation x-flairLine-Vmulti Type 22 | Type 33 | |
| Height mm | 405 - 905 |
| Length mm | 405 - 2005 |
| Depth mm | 102 - 157 |
| Heat output watts 55/45-20 °C | 507 - 3768 |
x-flair with cooling function
The cooling function of the x-flair heat pump radiator is a new feature
Together with a heat pump such as the x-change dynamic pro, which is designed for heating and cooling as standard, the radiator ensures pleasant temperature control in both winter and summer.

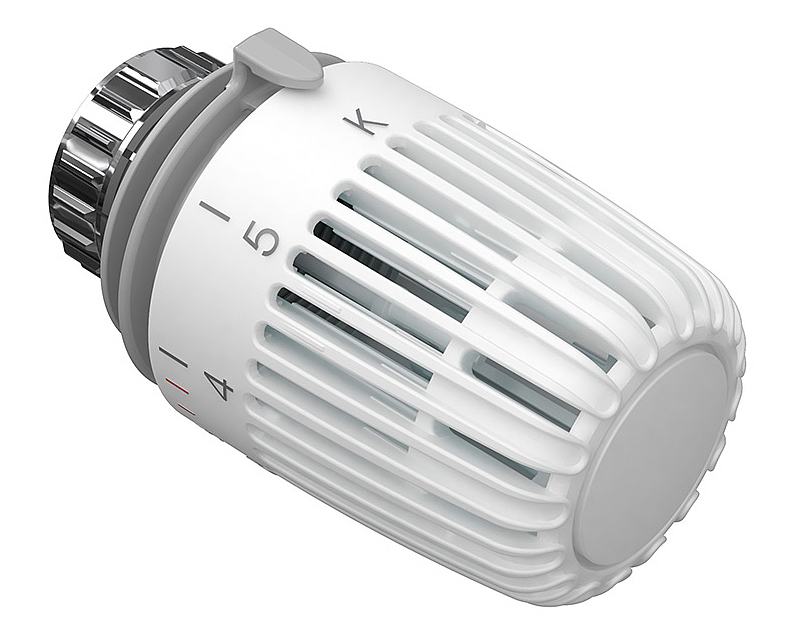

The functionality Dry cooling is provided with the use of the special x-flair thermostatic sensor head.
