Air-to-water heat pump x-change® dynamic pro AW E
More efficient and sustainable. The modulating x-change dynamic pro AW E air/water heat pump impresses with its highly efficient and whisper-quiet operation.

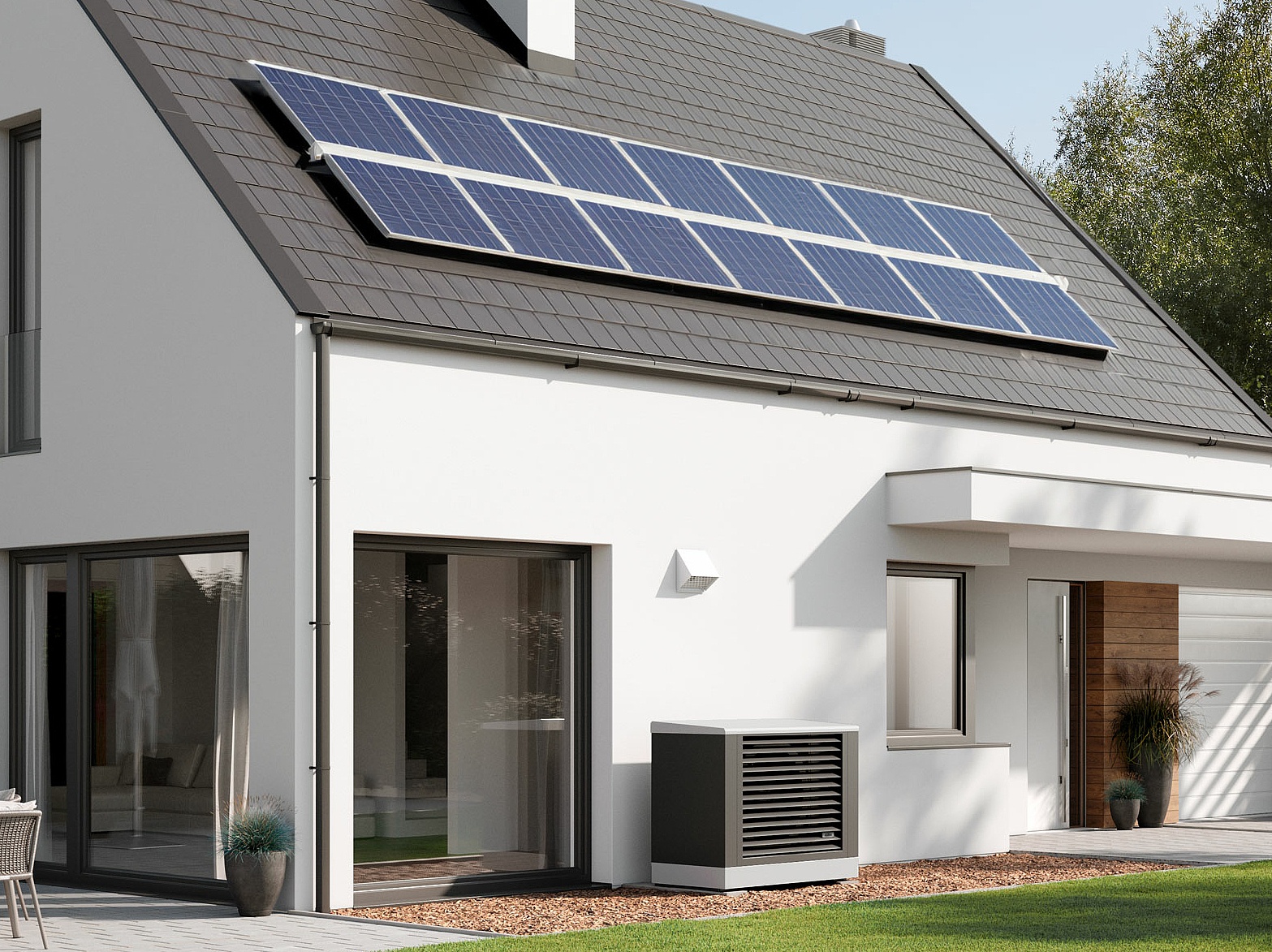

This is made possible by the latest axial fan technology including whisper mode and a large modulation range of the compressor, fan and charging pump. The high-quality housing with robust stainless steel cover, combined with the multi-insulated and triple sound-decoupled refrigeration circuit, ensures the lowest possible sound emissions. The heat pump can provide modulating cooling output by reversing the process. Thanks to a new environmentally friendly refrigerant, operation is particularly sustainable. For even more sustainable operation, it can be combined with a PV system and electricity storage. Hybrid operation with other renewable energies such as solar thermal energy or biomass is also possible. The x-change dynamic pro air/water heat pump scores highly in terms of efficiency, low sound emissions and the latest control technology. The installation effort is reduced to a minimum and a new small output size for energy-efficient new builds rounds off the range of applications perfectly.
x-change dynamic pro ac AW E
- Modulating air/water heat pump for outdoor installation
- Output sizes (A-7/W35):
- pro ac 6 AW E: 3.5 - 7.5 kW
- pro ac 10 AW E. 4.9 - 15.0 kW
- per ac 16 AW E: 7.0 - 19.0 kW
- COP: up to 4.80 (A2/W35)
- With active cooling function

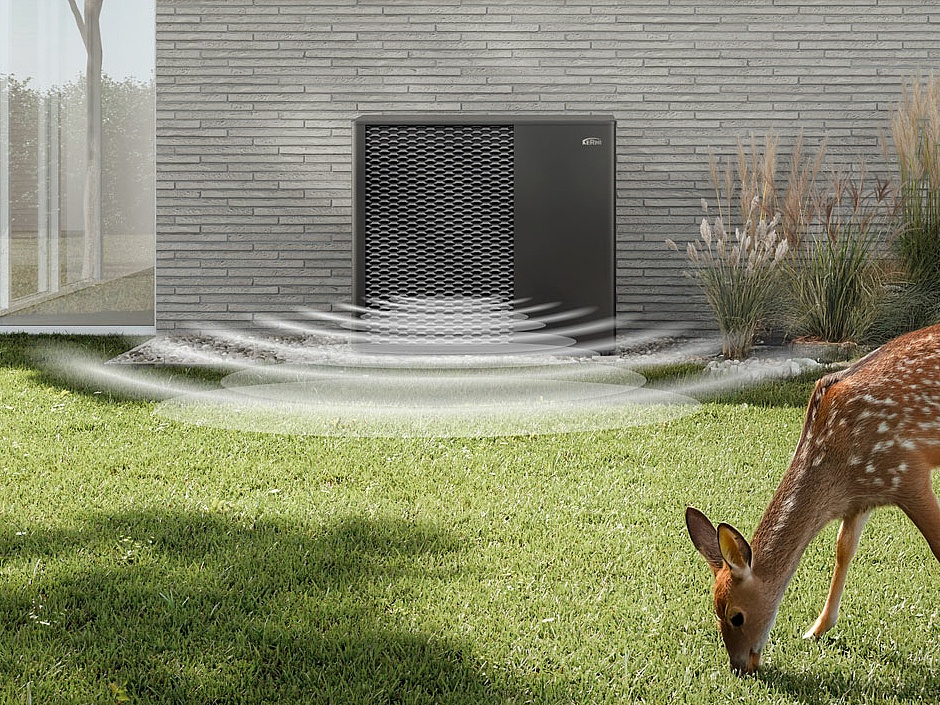

- Lowest sound emissions thanks to an optimised axial fan design with whisper mode
- App and web-based remote control of the heat pump via tablet, PC, smartphone
- Range of applications from -20 °C to 35 °C
Perfect complement
Buy a KERMI heat pump
We attach great importance to the highest quality and flawless installation of our products. That is why we sell KERMI heat pumps exclusively via the three-stage sales channel. This ensures that you not only receive a premium product, but also benefit from the best possible advice, planning and professional installation. Your qualified local specialist partner is your direct contact and ensures the optimal integration of our efficient and sustainable heating solutions into your home.
x-change dynamic pro ac AW E
| x-change dynamic pro ac 6 AW E | x-change dynamic pro ac 10 AW E | x-change dynamic pro ac 16 AW E | |
| Energy source | Fan | Air | Air |
| Installation location | outside | outside | outside |
| Function | heating and cooling | heating and cooling | heating and cooling |
| Energy efficiency class heat pump 35 °C/55 °C | A+++ | A+++ | A+++ |
| Heating capacity (kW) at A2/W35 | modulating 4.0 - 8.1 | modulating 4.9 - 11.0 | modulating 7.0 - 19.0 |
| COP1 A2/W35 | 4,66 | 4,80 | 4,68 |
| Cooling output (kW) with A35/W18 | 4,5 - 8,0 | 4,5 - 11,0 | 8,4 - 17,0 |
| Width x depth X height (mm) | max. 1270 x 680 x 1075 | max. 1430 x 680 x 1150 | max. 1510 x 680 x 1380 |
| SG ready capable | Yes | Yes | yes |
