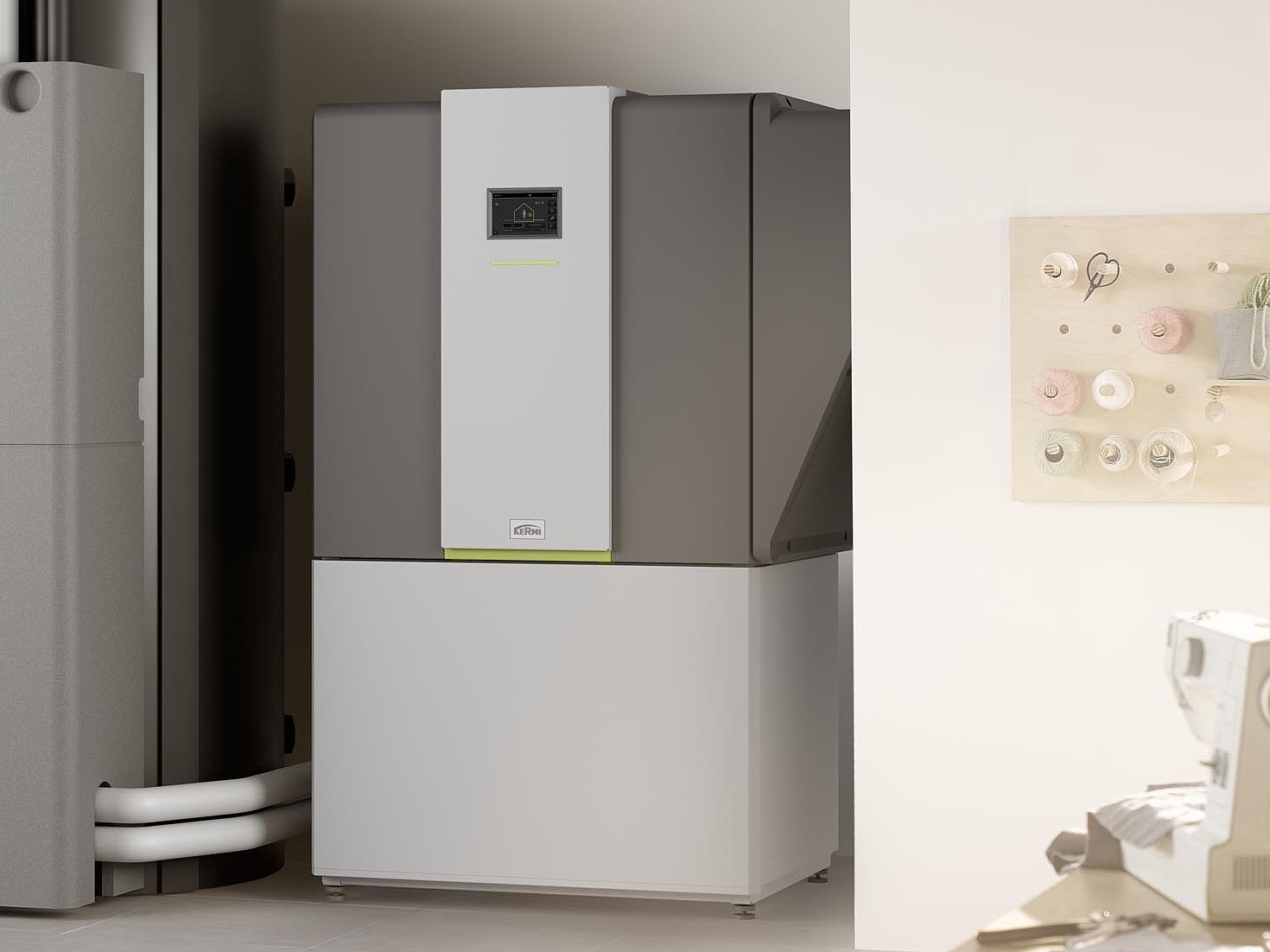

Air-to-water heat pump x-change® dynamic AW I
More efficient and sustainable. The modulating x-change dynamic AW I air/water heat pump is bound to impress thanks to its extremely efficient and virtually silent operation.
This is made possible by a new and innovative EPP housing design along with the latest radial fan technology, which includes a whisper mode and a large modulation range for the compressor, fan, and charge pump. Together with the cooling circuit featuring multiple insulation and triple sound proofing, the high-quality lower housing section ensures very low sound emissions. By reversing the process, the “ac” variant can modulate to provide cooling output.
The x-change dynamic is equipped with the x-center x40 control.
x-change dynamic AW I
- Modulating air/water heat pump for indoor installation
- Output sizes (A-7/W35):
- 8 AW I: 3.5 - 10.0 kW
- 16 AW I: 6.0 - 15.0 kW
- COP: up to 4.21 (A2/W35)
- Optionally with active cooling function
- Lowest sound emissions thanks to an optimised radial fan design with whisper mode
- Integrated weather-compensated x-center x40 control system
- Range of applications from -20 °C to 35 °C
Perfect complement
Buy a KERMI heat pump
We attach great importance to the highest quality and flawless installation of our products. That is why we sell KERMI heat pumps exclusively via the three-stage sales channel. This ensures that you not only receive a premium product, but also benefit from the best possible advice, planning and professional installation. Your qualified local specialist partner is your direct contact and ensures the optimal integration of our efficient and sustainable heating solutions into your home.
x-change dynamic AW I
| Energy source | Air |
| Installation site | indoors |
| Function | Heating / optional active cooling |
| Heating capacity range (kW) | 4 - 16 (with A2/W35) |
| COP (tested according to EN 14511:2011) | up to 4.21 (A2/W35) |
| Cooling capacity range (kW) | 6.5 - 16.5 (A35/W18) |
| Dimensions W x D x H (mm) | 1045 x 770 x 1770 |
| SG ready capable | Yes |
| Energy efficiency class at 35 °C | A+++ |
