x-fresh® Multi Split System
One system, many rooms. Maximum comfort
Flexible, quiet and space-saving. Smart climate - intelligently controlled
Highlights
Models
Documents
x-fresh air conditioning units - Multi Split System
- Flexibility: air-condition up to 5 rooms with just one outdoor unit
- Space-saving and quiet: fewer outdoor units on the façade, harmonious appearance
- Individual control: each room has its own comfort climate
- Improved room air distribution thanks to a higher number of indoor units
- Ideal for renovations: can be retrofitted flexibly

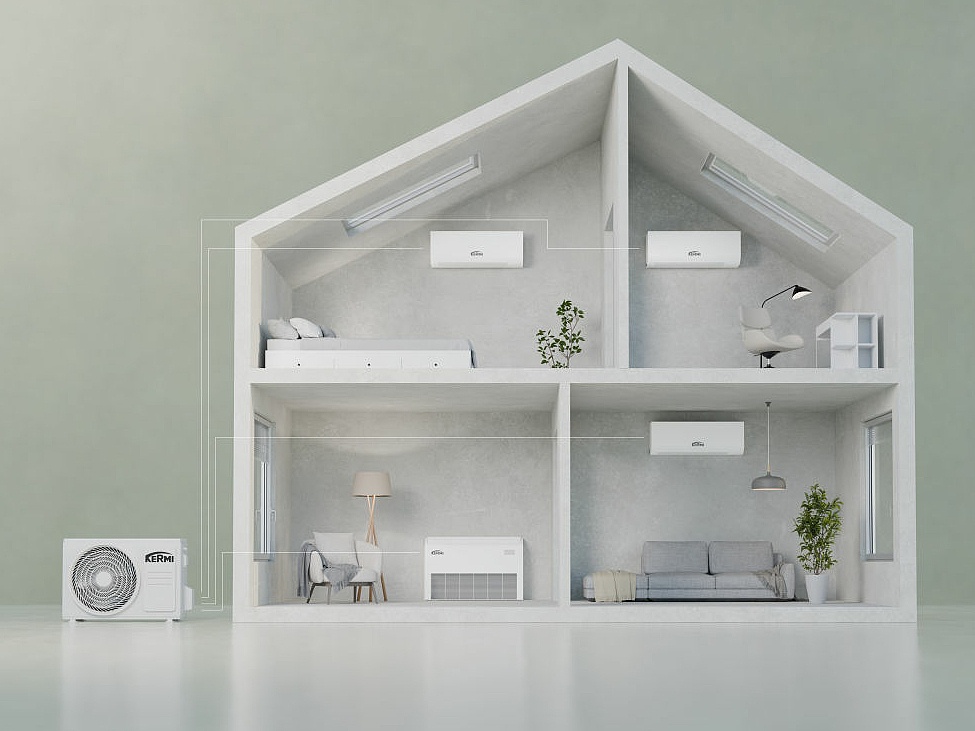

Combination options
With our multi-split system, it is possible to combine several indoor units with just one outdoor unit. The system can be operated with the desired number of indoor units or initially started with one indoor unit. Subsequent expansion, e.g. as part of a renovation, is possible without any problems.
Choosing the right multi-split system
Indoor unit

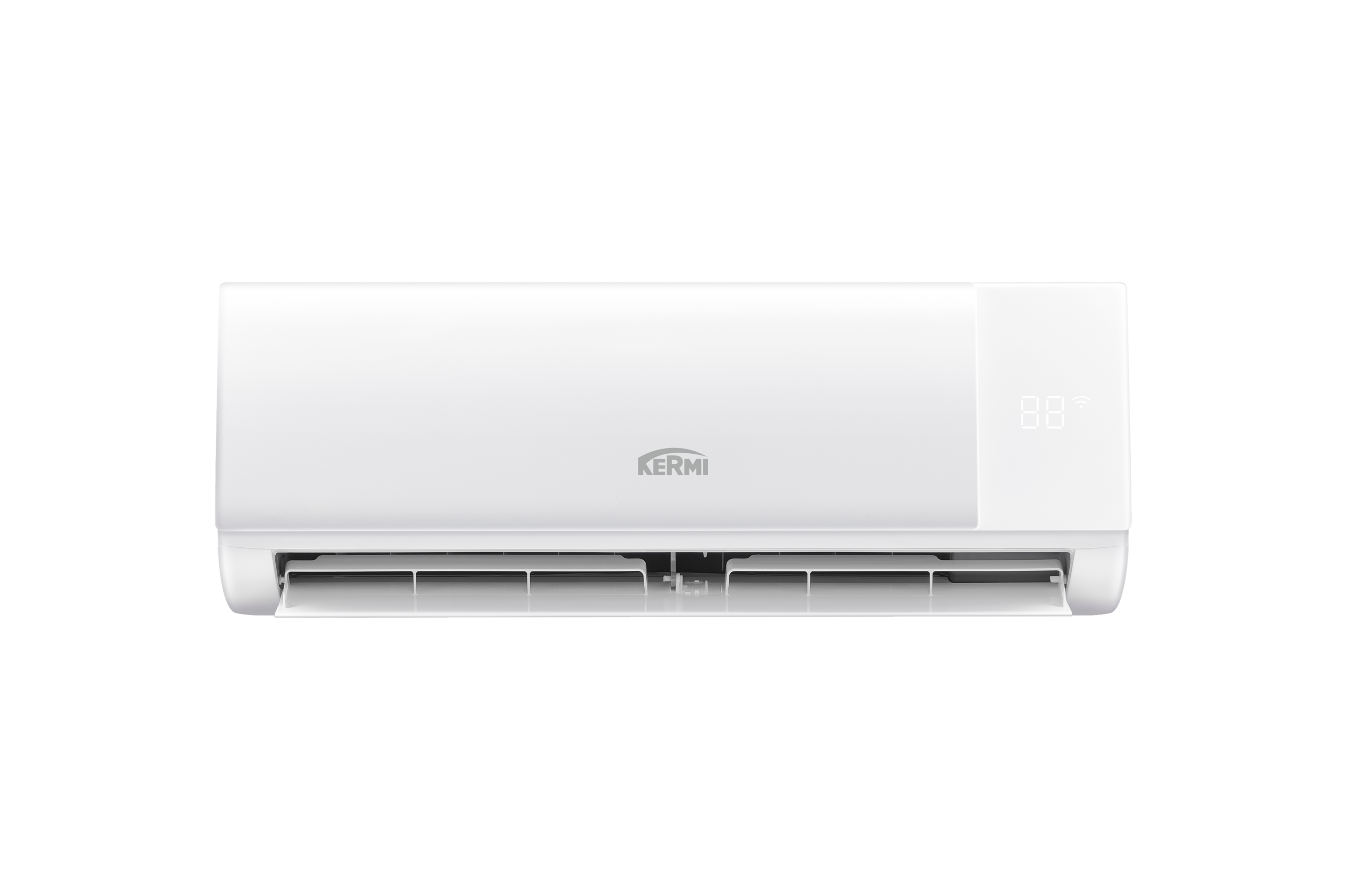

x-fresh indoor highwall basic
- Minimal standby consumption thanks to 1W standby
- "Follow me" temperature measurement via remote control
- Very quiet operation 21 dB(A)
- High-density odour and particle filter
- User-friendly sleep mode without visual and acoustic signals
- 27: x-fresh indoor highwall basic 27SR
Cooling output kW: 2.64
Cooling capacity Btu/h: 9,000
Heating capacity kW: 2.93
Heating capacity Btu/h: 10,000
Air flow rate m3/h: 460
- 35: x-fresh indoor highwall basic 35SR
Cooling output kW: 3.52
Cooling capacity Btu/h: 12,000
Heating capacity kW: 3.81
Heating capacity Btu/h: 13,000
Air flow rate m3/h: 570
- 53: x-fresh indoor highwall basic 35SR
Cooling output kW: 5.30
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.57
Heating capacity Btu/h: 19,000
Air flow rate m3/h: 800
- 70: x-fresh indoor highwall basic 35SR
Cooling output kW: 7.03
Cooling capacity Btu/h: 24,000
Heating capacity kW: 7.33
Heating capacity Btu/h: 25,000
Air flow rate m3/h: 1090
Indoor unit

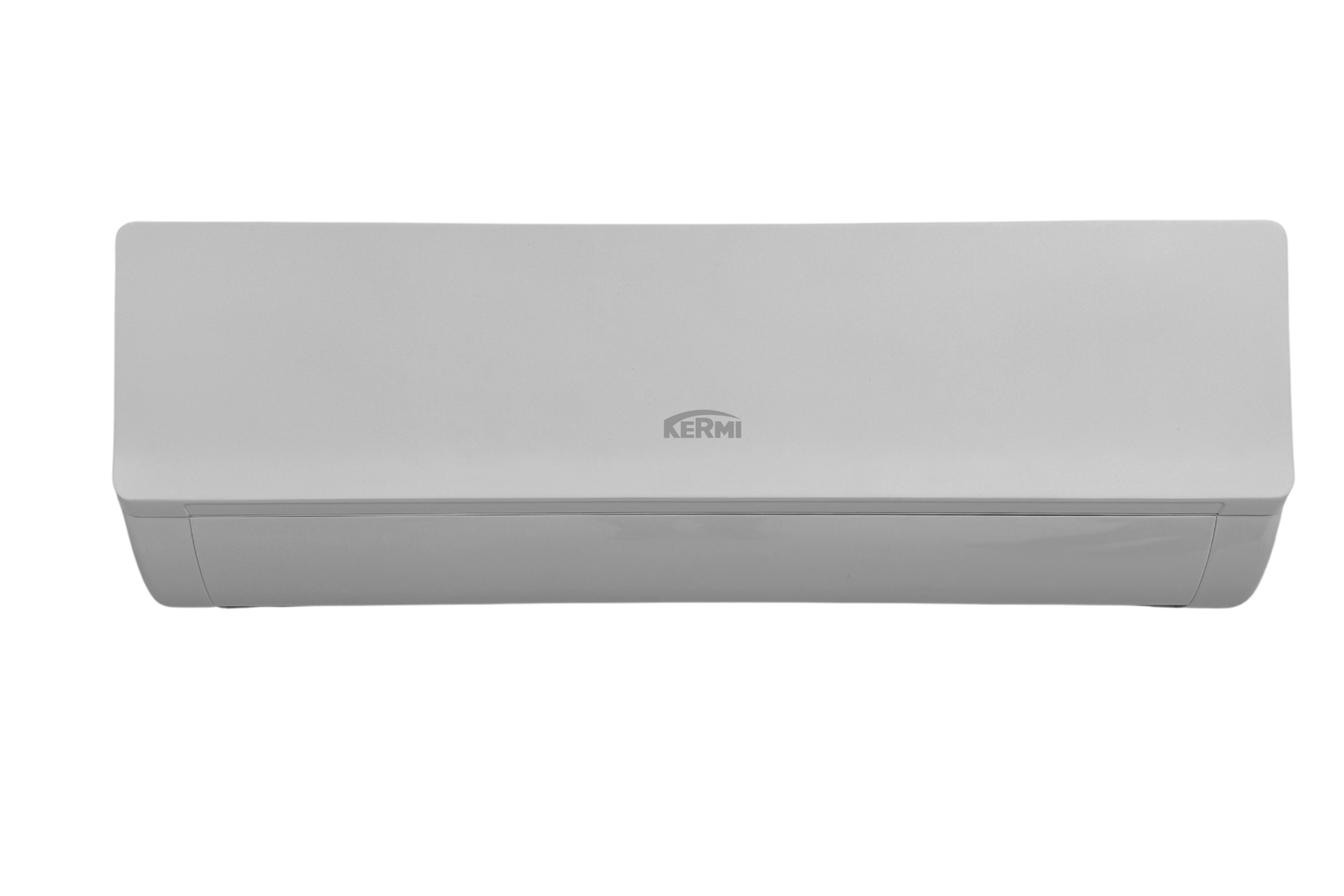

x-fresh indoor highwall eco
- Intelligent eye sensor recognises movement and adjusts operating mode
- Very quiet operation 19dB(A)
- Humidity control, adjustable dehumidification
- Air Magic ioniser: air purification, removes up to 99.9% of germs
- Control with KERMI x-center APP (incl. WiFi kit)
- KI ECO mode with energy savings of up to 30
- 29: x-fresh indoor highwall eco 29SR
Cooling output kW: 2.60
Cooling capacity Btu/h: 9,000
Heating capacity kW: 2.90
Heating capacity Btu/h: 10,000
Air flow rate m3/h: 510
- 35: x-fresh indoor highwall eco 35SR
Cooling output kW: 3.50
Cooling capacity Btu/h: 12,000
Heating capacity kW: 3.80
Heating capacity Btu/h: 13,000
Air flow rate m3/h: 570
- 53: x-fresh indoor highwall eco 35SR
Cooling output kW: 5.00
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.40
Heating capacity Btu/h: 18,400
Air flow rate m3/h: 800
- 70: x-fresh indoor highwall eco 35SR
Cooling output kW: 6.10
Cooling capacity Btu/h: 20,100
Heating capacity kW: 7.30
Heating capacity Btu/h: 24,900
Air flow rate m3/h: 1090
Indoor unit

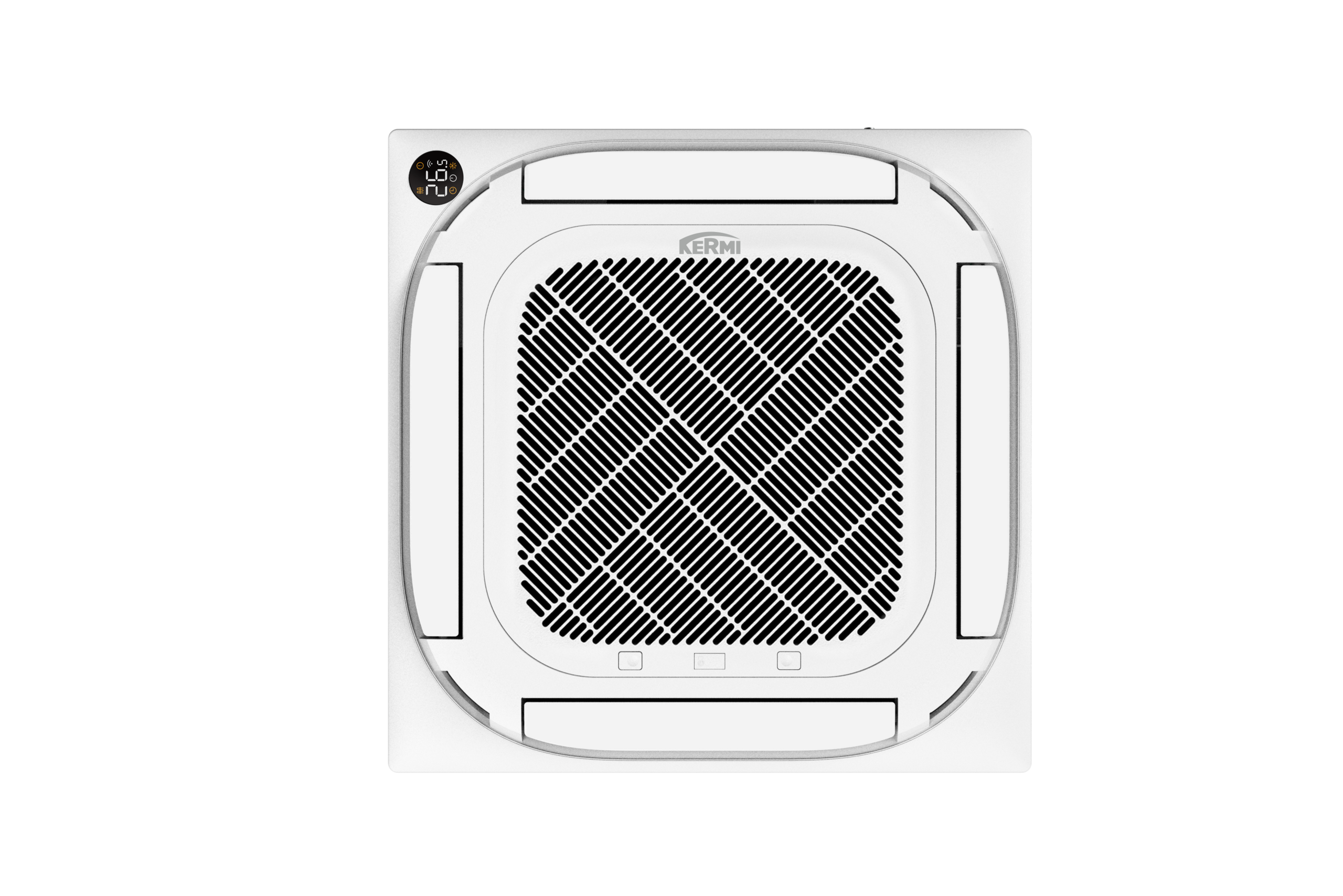

x-fresh indoor cassette S
Features:
- Variable airflow direction thanks to controllable horizontal and vertical slats
- 360 degree airflow - even air manifold all round
- Integrated condensate pump, 1000 mm delivery head
- Wired control enables operation via cable controller
- Primary air connection as preparation for external fresh air supply
- 27: x-fresh indoor cassete S 27R
Cooling output kW: 2.64
Cooling capacity Btu/h: 9,000
Heating capacity kW: 2.93
Heating capacity Btu/h: 10,000
Air flow rate m3/h: 500
- 35: x-fresh indoor cassete S 35RC
Cooling output kW: 3.52
Cooling capacity Btu/h: 12,000
Heating capacity kW: 4.10
Heating capacity Btu/h: 13,000
Air flow rate m3/h: 620
- 53: x-fresh indoor cassete S 53RC
Cooling output kW: 5.30
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.40
Heating capacity Btu/h: 19,000
Air flow rate m3/h: 660
Indoor unit

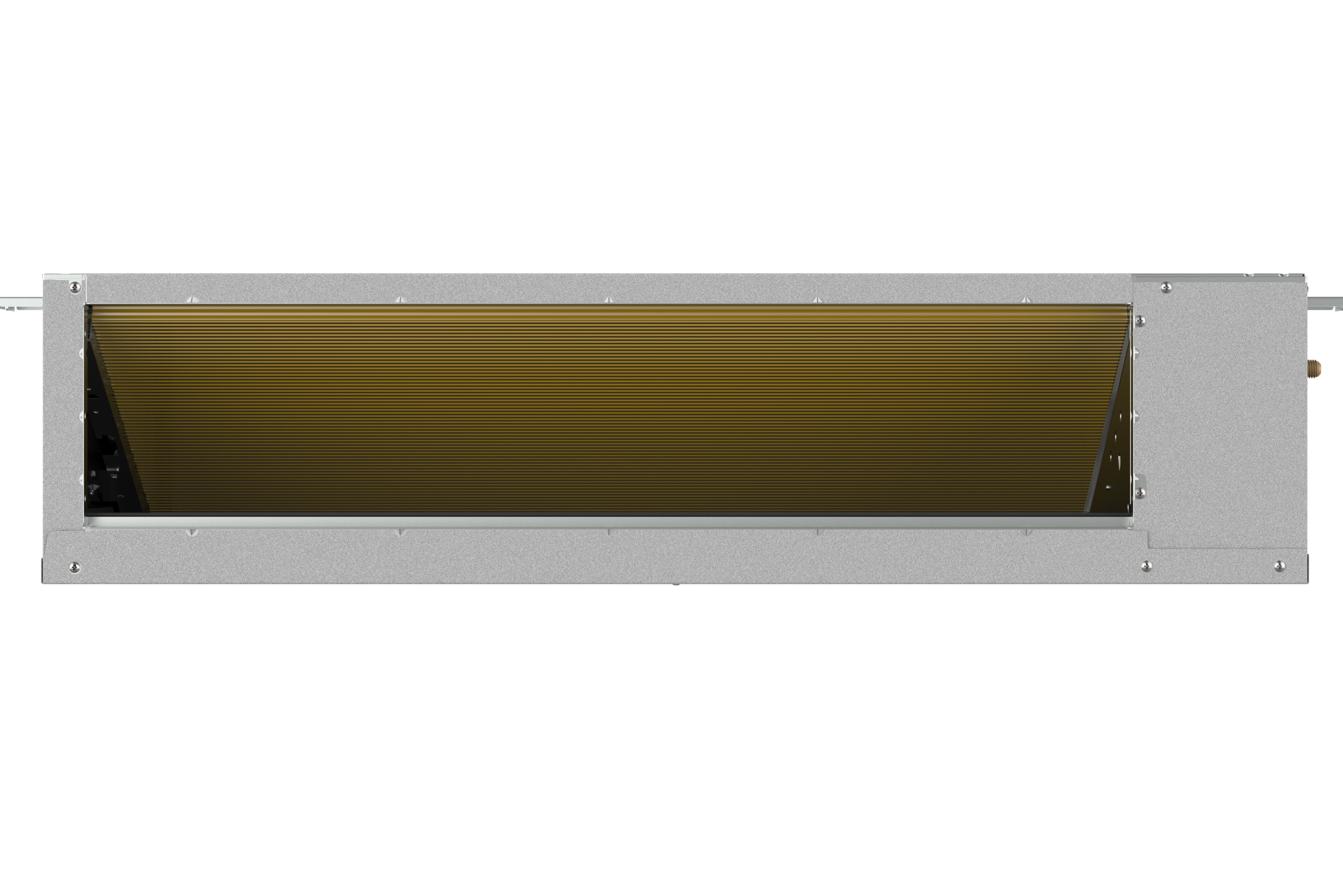

x-fresh indoor duct
Features:
- Sleep function: quiet night mode with temperature adjustment
- Follow me temperature measurement via remote control
- Integrated condensate pump, 750 mm delivery head
- Wired control enables operation via cable controller
Primary air connection in preparation for external fresh air supply
- 27: x-fresh indoor duct 27R
Cooling capacity kW: 2.64
Cooling capacity Btu/h: 9,000
Heating capacity kW: 2.93
Heating capacity Btu/h: 10,000
Air flow rate m3/h: 620
- 35: x-fresh indoor duct 35RC
Cooling output kW: 3.52
Cooling capacity Btu/h: 12,000
Heating capacity kW: 3.81
Heating capacity Btu/h: 13,000
Air flow rate m3/h: 660
- 53: x-fresh indoor duct 53RC
Cooling output kW: 5.30
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.57
Heating capacity Btu/h: 19,000
Air flow rate m3/h: 900
- 70: x-fresh indoor duct 70RC
Cooling output kW: 7.03
Cooling capacity Btu/h: 24,000
Heating capacity kW: 7.62
Heating capacity Btu/h: 26,000
Air flow rate m3/h: 1200
Indoor unit

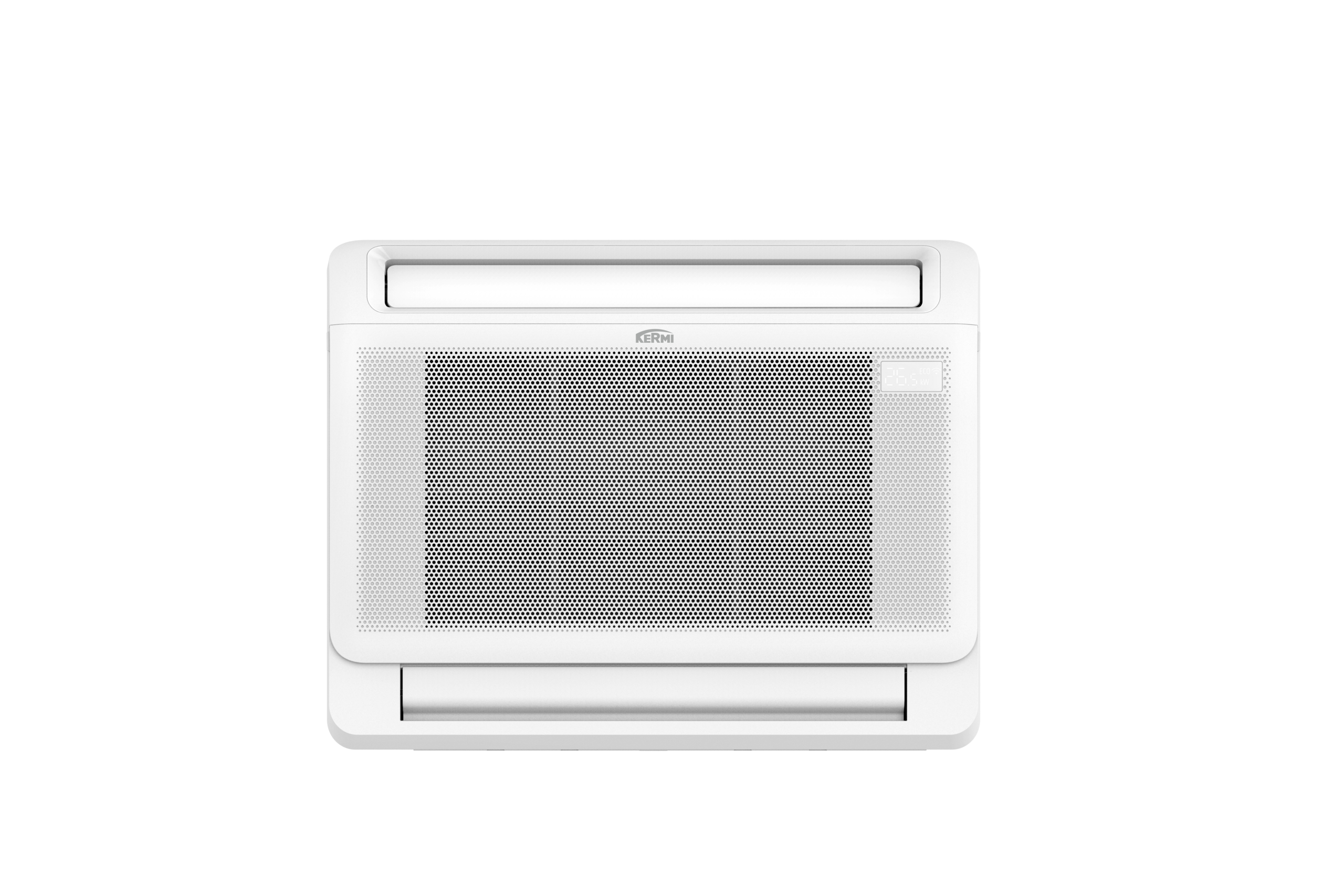

x-fresh indoor case wall
Features:
- Sleep function: Quiet night mode with temperature adjustment
- Follow me temperature measurement and control via remote control
- Variable airflow direction thanks to controllable horizontal and vertical slats
- High odour and particle filter
Very quiet operation 21 dB(A)
- 27: x-fresh indoor case wall 27R
Cooling output kW: 2.64
Cooling capacity Btu/h: 9,000
Heating capacity kW: 2.93
Heating capacity Btu/h: 10,000
Air flow rate m3/h: 650
- 35: x-fresh indoor case wall 35RC
Cooling output kW: 3.52
Cooling capacity Btu/h: 12,000
Heating capacity kW: 3.81
Heating capacity Btu/h: 13,000
Air flow rate m3/h: 650
- 53: x-fresh indoor case wall 53RC
Cooling output kW: 4.98
Cooling capacity Btu/h: 17,000
Heating capacity kW: 5.30
Heating capacity Btu/h: 18,000
Air flow rate m3/h: 780
Indoor unit

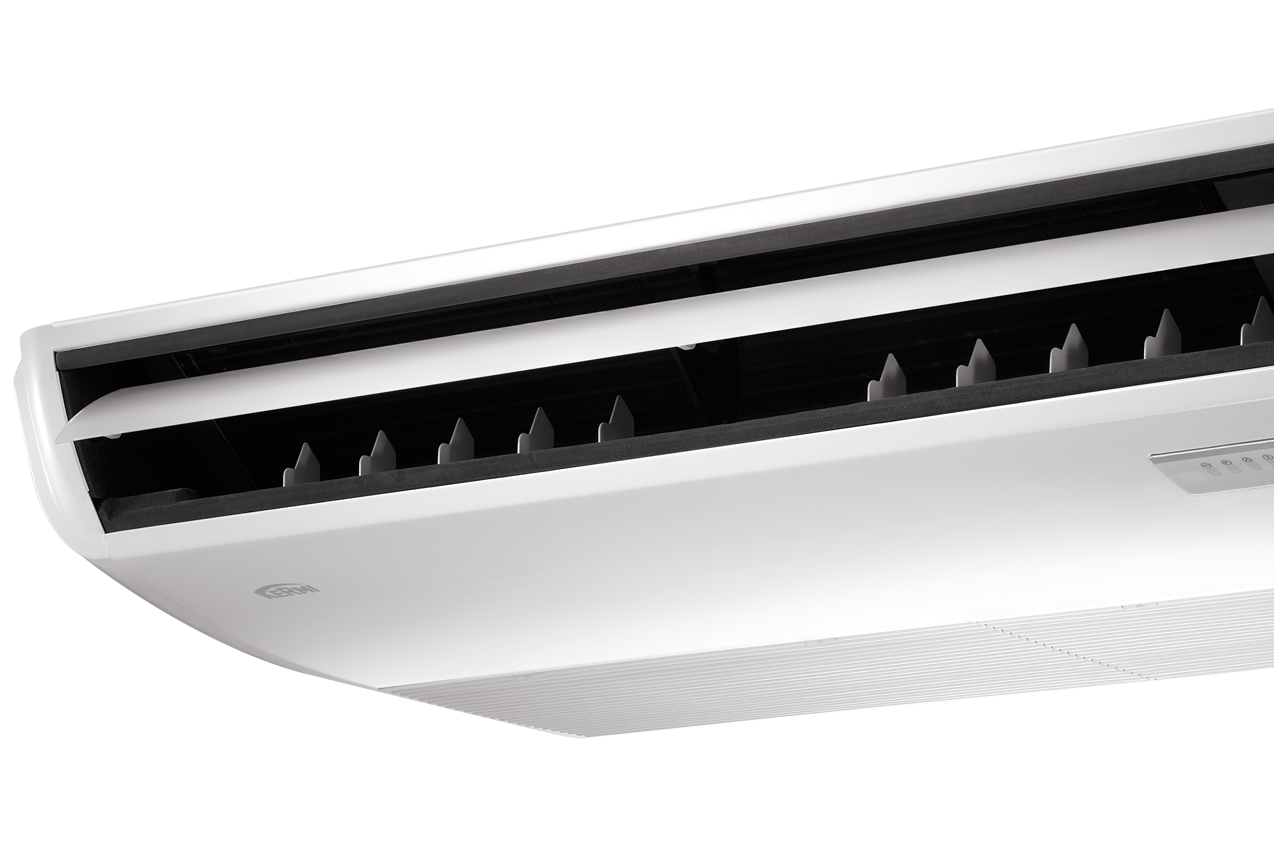

x-fresh indoor case ceiling/ floor
Features:
- Sleep function: quiet night mode with temperature adjustment
- Variable flow direction thanks to controllable horizontal and vertical slats
- Automatic restart after power failure
- Timer enables 24-hour programming function
- Primary air connection as preparation for external fresh air supply
53: x-fresh indoor case ceiling/floor 53RC
Cooling capacity kW: 5.30
Cooling output Btu/h: 18,000
Heating capacity kW: 5.57
Heating capacity Btu/h: 19,000
Air flow rate m3/h: 958
Outdoor unit

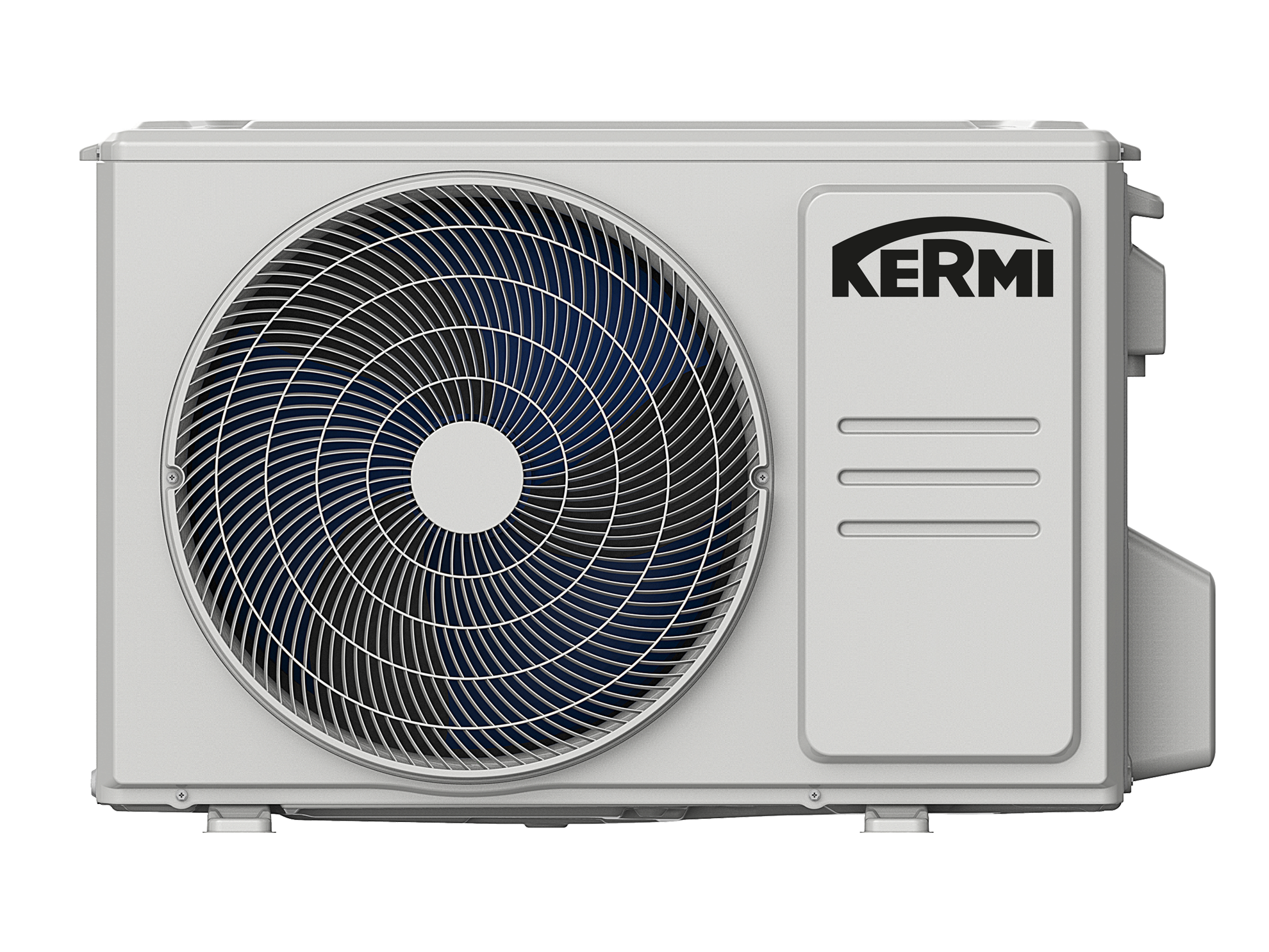

x-fresh outdoor multi
Features:
- Compact space-saving solution for efficient air conditioning with just one outdoor unit
- User-friendly: enables simultaneous, individual control of several rooms
- Ideal for modernisation, as it can be flexibly expanded and adapted
- Wide operating range: reliable cooling and heating in extreme outdoor temperatures
- 41: x-fresh outdoor multi 41R
Number of indoor units: Dual 1-2
Power supply: 1-2 outputs 230V
Cooling output kW: 4.1
Cooling capacity Btu/h: 14,000
Heating capacity kW: 4.40
Heating capacity Btu/h: 15,000
Energy class cooling/heating mode: A++/A+
- 53: x-fresh outdoor multi 53R
Number of indoor units: Dual 1-2
Power supply: 1-2 outputs 230V
Cooling output kW: 5.30
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.57
Heating capacity Btu/h: 19,000
Energy class cooling/heating mode: A++/A+
- 53-3: x-fresh outdoor multi 53-3R
Number of indoor units: Triple 1-3
Power supply: 1-3 outlets 230V
Cooling output kW: 5.30
Cooling capacity Btu/h: 18,000
Heating capacity kW: 5.30
Heating capacity Btu/h: 18,000
Energy class cooling/heating mode: A++/A+
- 61: x-fresh outdoor multi 61R
Number of indoor units: Triple 1-3
Power supply: 1-3 outlets 230V
Cooling output kW: 6.2
Cooling capacity Btu/h: 21,000
Heating capacity kW: 6.45
Heating capacity Btu/h: 22,000
Energy class cooling/heating mode: A++/A+
- 79: x-fresh outdoor multi 79R
Number of indoor units: Triple 1-3
Power supply: 1-3 outlets 230V
Cooling output kW: 7.90
Cooling capacity Btu/h: 27,000
Heating capacity kW: 8.20
Heating capacity Btu/h: 28,000
Energy class cooling/heating mode: A++/A+
- 82: x-fresh outdoor multi 82R
Number of indoor units: Quadri 1-4
Power supply: 1-4 outputs 230V
Cooling output kW: 8.20
Cooling capacity Btu/h: 28,000
Heating capacity kW: 8.80
Heating capacity Btu/h: 30,000
Energy class cooling/heating mode: A++/A+
- 105: x-fresh outdoor multi 105R
Number of indoor units: Quadri 1-4
Power supply: 1-4 outputs 230V
Cooling output kW: 10.50
Cooling capacity Btu/h: 36,000
Heating capacity kW: 10.80
Heating capacity Btu/h: 37,000
Energy class cooling/heating mode: A++/A+
- 125: x-fresh outdoor multi 125R
Number of indoor units: Quadri 1-4
Power supply: 1-5 outlets 230V
Cooling output kW: 12.30
Cooling capacity Btu/h: 42,000
Heating capacity kW: 12.30
Heating capacity Btu/h: 42,000
Energy class cooling/heating mode: A++/A+
