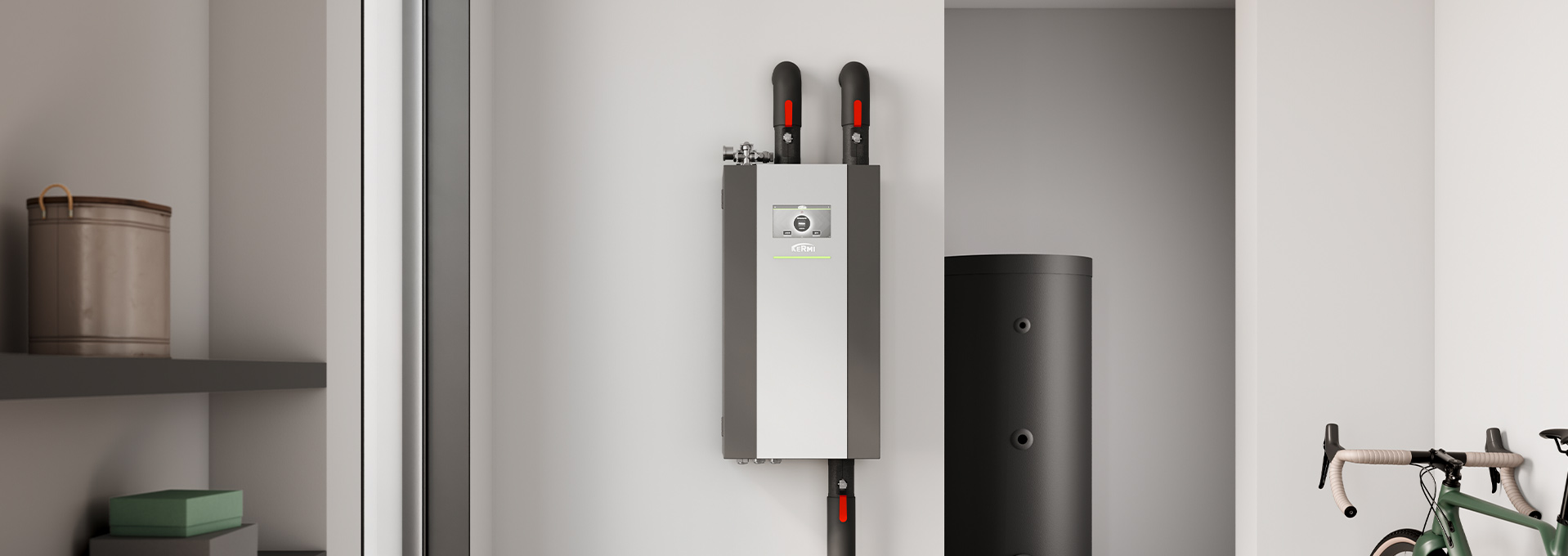

Hydrobox eco
The perfect interface between heat pump and buffer storage system
The Hydrobox eco is the central regulation and control unit for the provision and manifold of thermal energy in the heating system - and forms the hydraulic interface between the heat pump and the buffer storage system.
It is specially designed for use with the x-change dynamic eco heat pump and offers a particularly attractive price-performance ratio. Without compromising on the proven KERMI system quality.
The robust metal housing contains all the control components required to operate the heat pump.
The integrated hydraulics consist of a PWM-controlled buffer storage charging pump and a 3-way changeover valve, which reliably transport the heating water to the connected buffer storage tanks.
An electric auxiliary heater in the form of a flow heater is also integrated in the hydraulic circuit.
Features
For direct installation on the Hydrobox eco, 3 ball valves and a safety group are included in the scope of delivery.
The insulation also enables a cooling function in the system up to 15 °C.
All electrical components are fully wired at the factory, minimising installation work.
Functions such as Smart Grid, Power to Heat and electronic heat quantity recording are integrated, as is the option of integrating additional Kermi devices via Modbus.
The integrated x-center pro control unit can be remotely maintained without additional accessories - the heat pump system can be conveniently controlled web-based or via app.
Consisting of:
- Storage tank charging pump and 3-way changeover valve (heating / DHW)
- Flow heaters with 9 KW Additional connection for circulation pump and for an additional heating circuit
- 7" colour touch display with intuitive and simple menu navigation
Compatible with:
x-change dynamic eco S / M / L
Technical data
| Weighting (kg) | 36 |
| Dimensions H x W x D (mm) | 1010 x 420 x 270 |
| Housing dimensions H x W x D (mm) | 790 x 420 x 270 |
